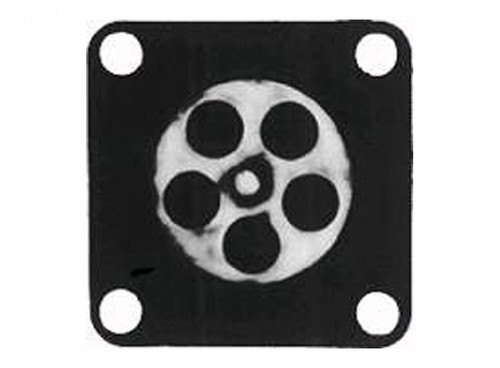

  • Metering Diaphragm Tillotson 3654

    • Metering Diaphragm Tillotson 3654

    Rotary

    $3.85
    (No reviews yet) Write a Review
    SKU:
    R_3654
    UPC:
    34761036541
    Weight:
    0.00 LBS
    Width:
    3.00 (in)
    Height:
    0.10 (in)
    Depth:
    3.00 (in)
    Shipping:
    Calculated at Checkout

    Product Description

    Diaphragm Assembly also supplied in DG-5HS Kit. Fits Tillotson HS series Carburetors.

    Replaces:
    • TILLOTSON 237-653
    Dimensions:
    • CASE QTY: 2000
    • PALLET QTY: 168
